Hangzhou Qianjiang Century City

Office hotel
  • Location

    Hangzhou, Zhejiang

  • Client

    Hangzhou Zhehong Real Estate Co., Ltd

  • Design

    Aedas



Xiao Zhengchu Out [2018] Plot 27 project is located in Plot FG 20-C1C2-13 and Plot 14 of Olympic Sports Center and International Expo Center, Xiaoshan District, Hangzhou.


Project in line with the design of "a river on both sides of the river, the twins core" vision, and to "Qianjiang + set sail" as a design concept, the overall building shape in sailing, scale ecological curtain wall as the curve changes, the sunlight refraction sparkling visual effect, at the same time with the lighting design, give facade more rich level.

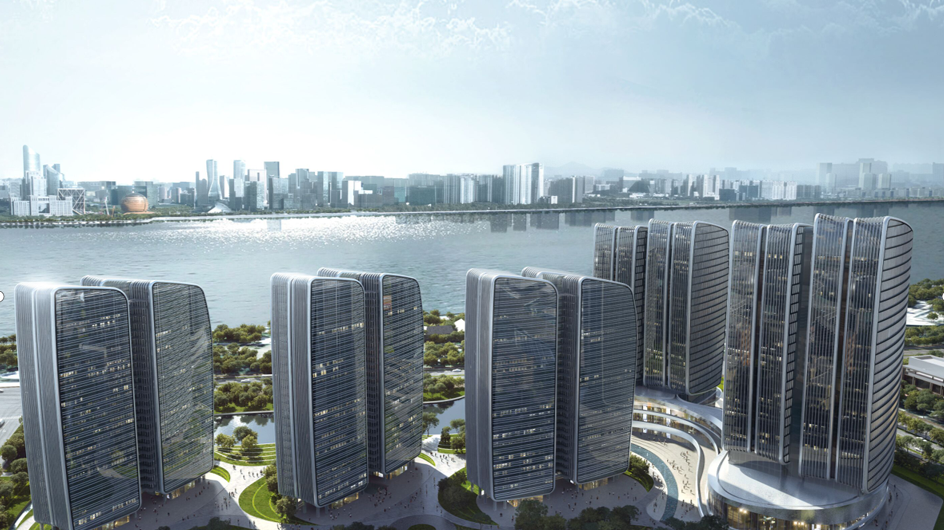

▲ Overall effect of the project


 Slide left and right to view more project images


In complex project outside skin design, often involves the design of various materials, the boundary between different system processing, body, and complex form also need to consider the effect of the ground and realize the effect of the technical support, found in the process in the problem, solve the problem, promote the project rapid progress, these are the core value of professional curtain wall consultant.


The following is the design introduction of the main curtain wall system. It mainly analyzes the key and difficult points of the complex system design of the project and provides innovative solutions, as well as summarizes the problems encountered in the design process.



01



Analysis and structural design of scale units


A

How to ensure the curtain wall performance of the complex body?


Difficult description


In order to imitate the feeling of sparkling water surface and enrich the facade effect to show the three-dimensional space sense, in the design of this project, the east and west facades adopt the dislocation scale triangle unit system, and the scale side window to achieve indoor ventilation.


The north and south sides tilt (inward + outward), the top and bottom handover position is arc. There are the outline of the top and bottom, and the top and bottom of the north and south arc surface. The overall project has high requirements for waterproof performance.


▲ North and south arc surface top shape

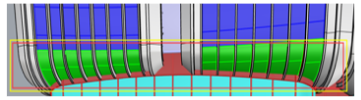

 The bottom of the north and south arc surface shape


Solution


Considering the building size, effect, cost and the intersection of unit drainage tank to enhance the water prevention and drainage performance, the area between the upper and lower dotted lines of T1 and T2 buildings is the unit curtain wall, namely 6-27 floors of T1 tower and 8-24 floors of T2 tower. The roof layer above the dotted line and the curved surface layer at the bottom of the tower below the dotted line adopt the frame practice.

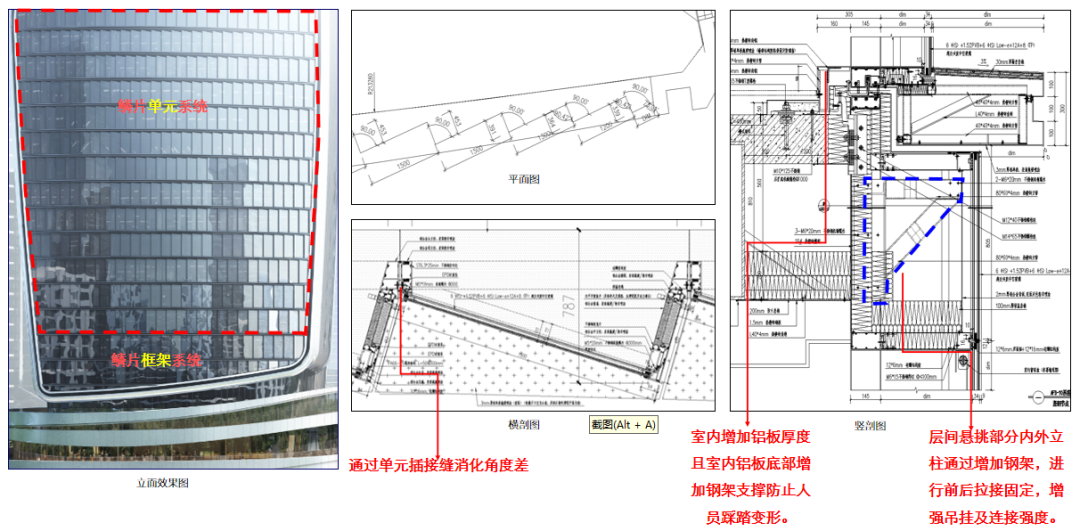

         ▲ Each orientation elevation unit and the frame boundary


B

How to ensure the complete open fan integrated effect?


Difficult description


The side opening form of the scale unit is the internal opening fan. The institute expects the opening fan to be an integrated effect without various splicing combinations, the more complete the effect, the better. Comprehensive consideration of the use of integrated mold mold form, because the opening fan needs to consider the hardware and four sides of the waterproof sealing and indoor look, so also need to consider the top and bottom of the splicing and treatment.


Soultion

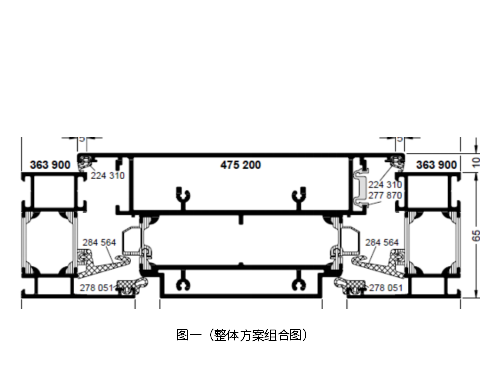

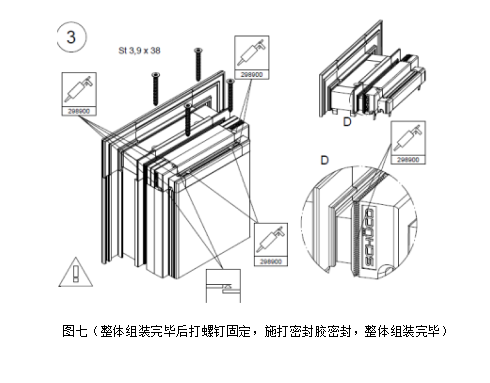

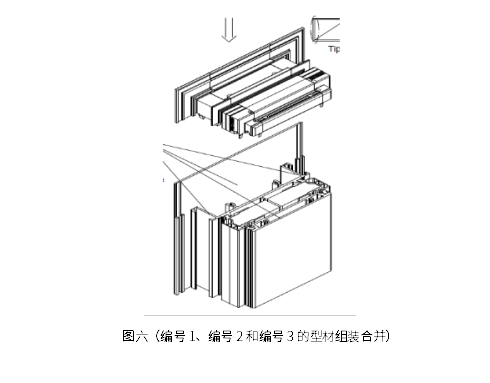

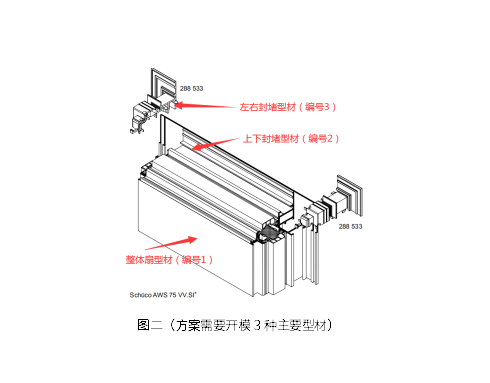

Design scheme of internal opening fan of integrated profile


Open the mold and complete other necessary functional requirements through other components.

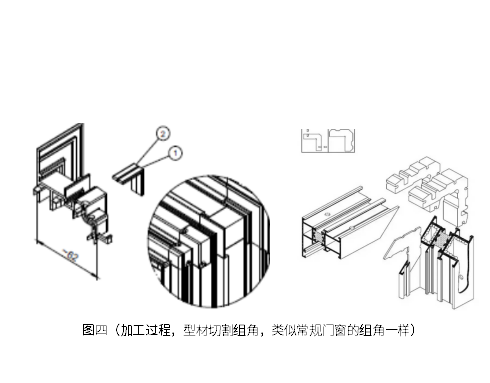

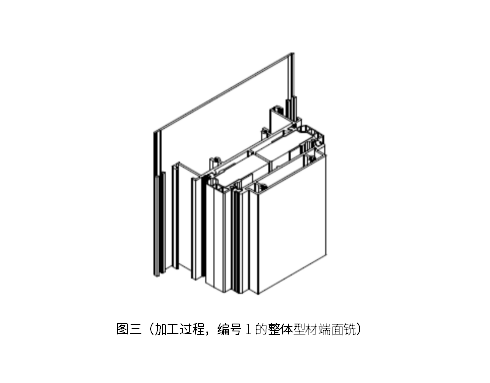

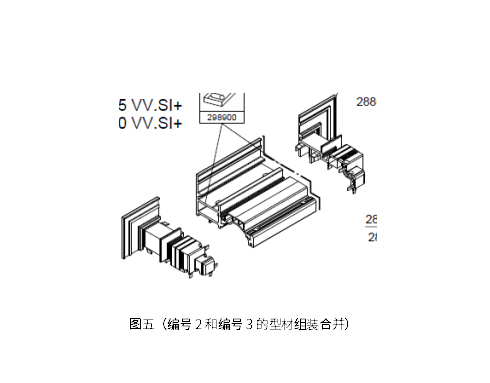

         ▲ Slide left and right to view the overall mold opening scheme

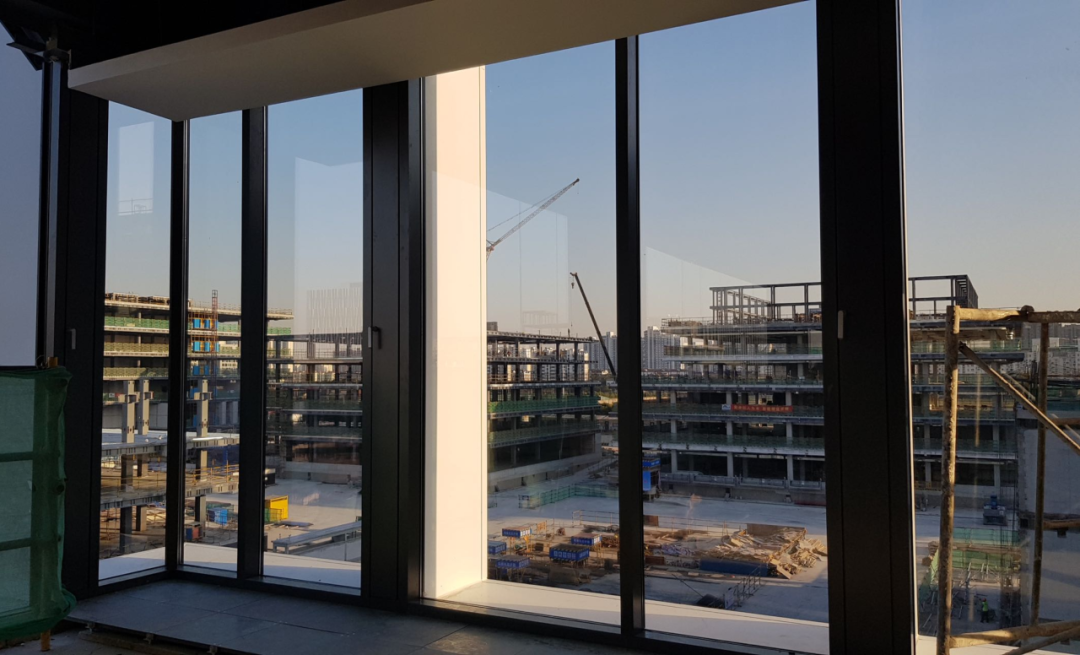

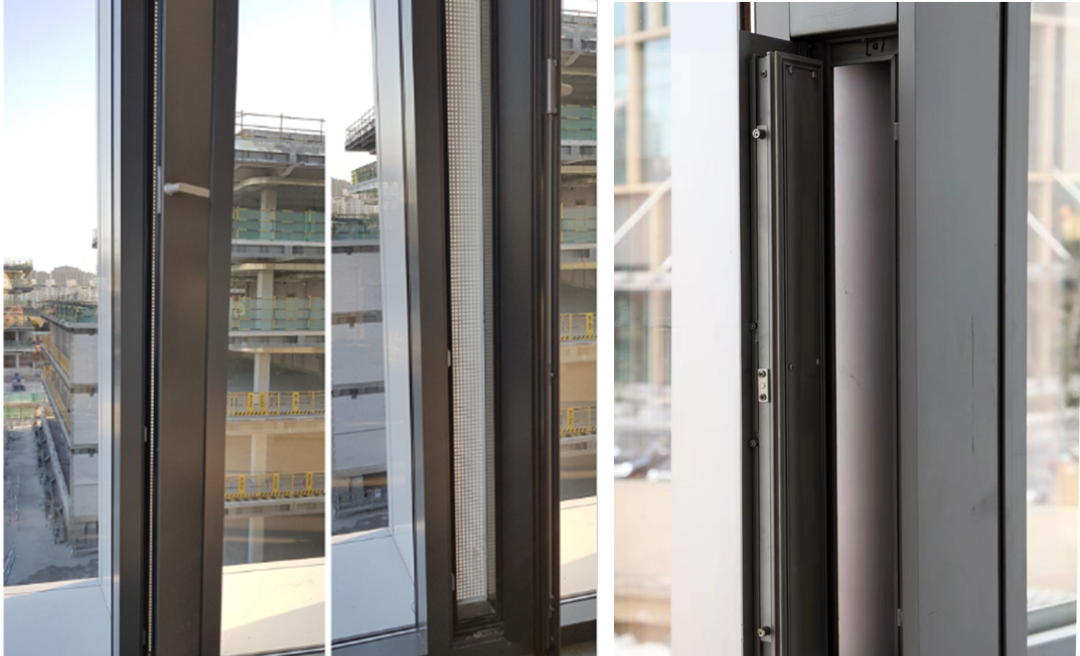

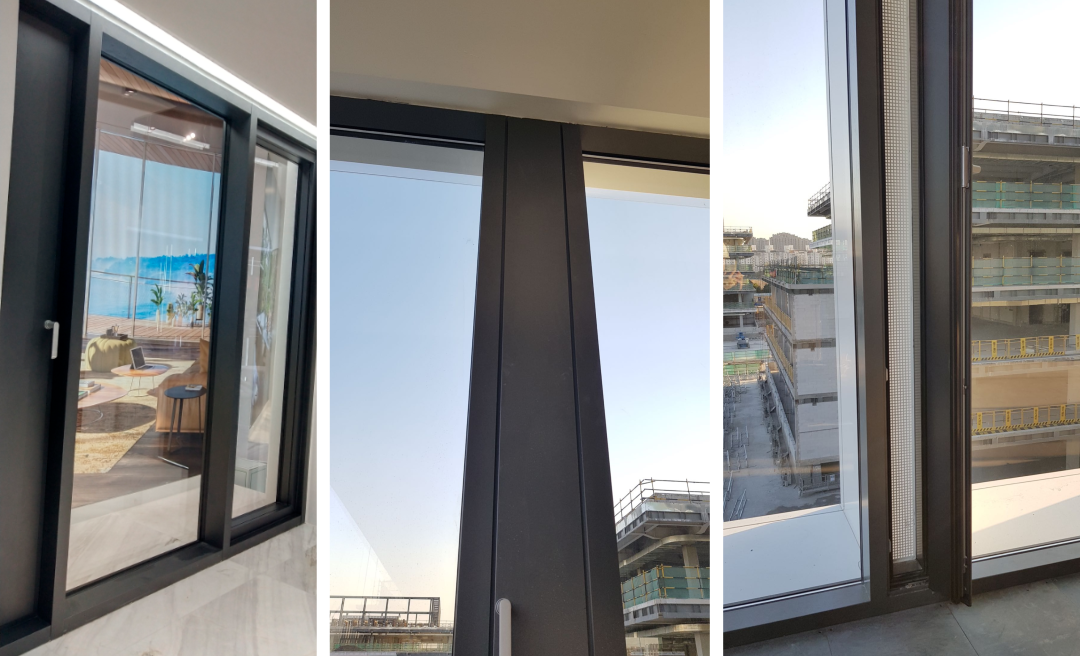

      ▲ Slide left and right to view the open fan integrated effect legend


C

How to avoid the tilt of different angles to affect the indoor effect?


Difficult description


Because the north and south side is inclined curtain wall, through the analysis of the rhino model, the order difference between the upper and lower plate exists. In the design, it is necessary to solve the order difference and to minimize the effect on the room.

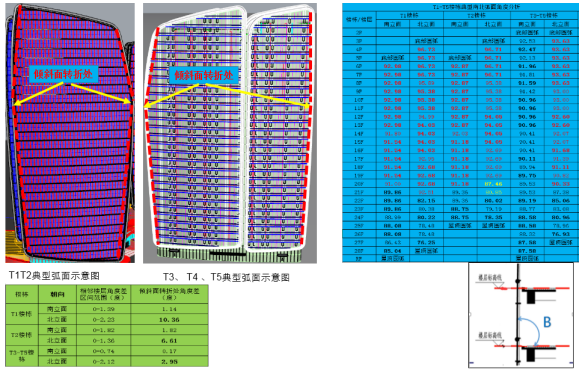

 Rhino model order difference analysis data


Soultion


Through the rhino model order difference analysis data and indoor beam order difference analysis data, and provide the owner with multiple schemes for comparison and selection, the digestion of indoor order difference by opening the mold (the adaptation Angle of each mold is ± 1°, to minimize the number of molds).

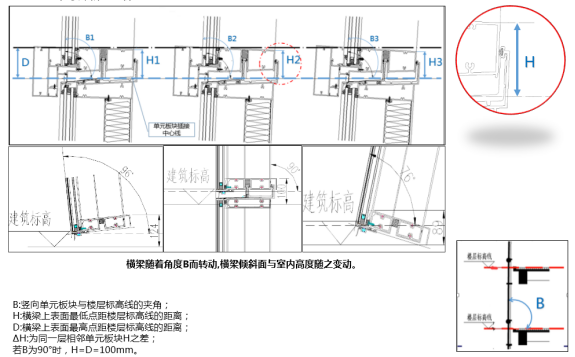

▲ Order difference analysis of indoor beams

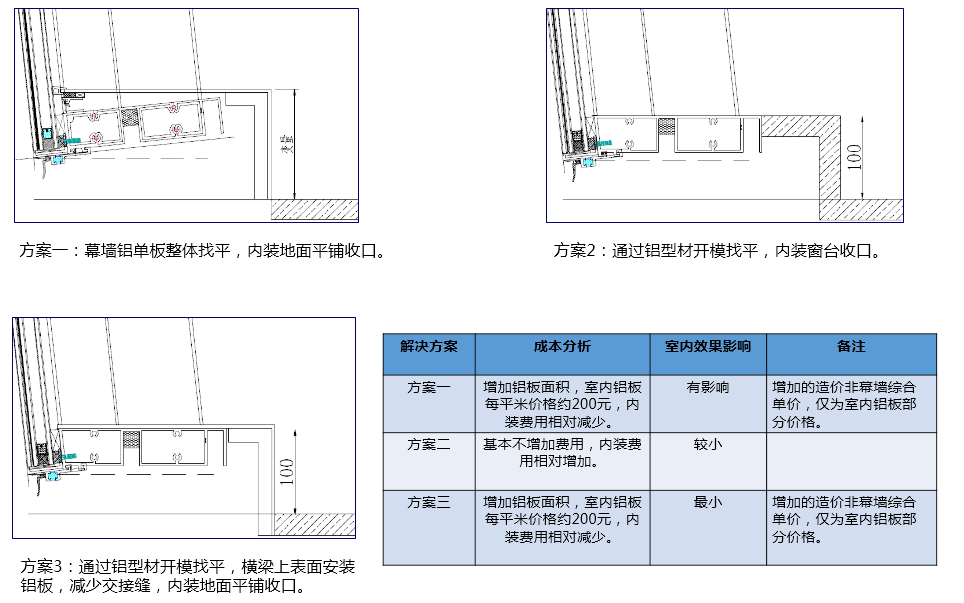

▲ Alignment of order difference elimination analysis schemes


D

How does the roof grille and the glass curtain wall present the circular arc step-like effect?


Difficult description

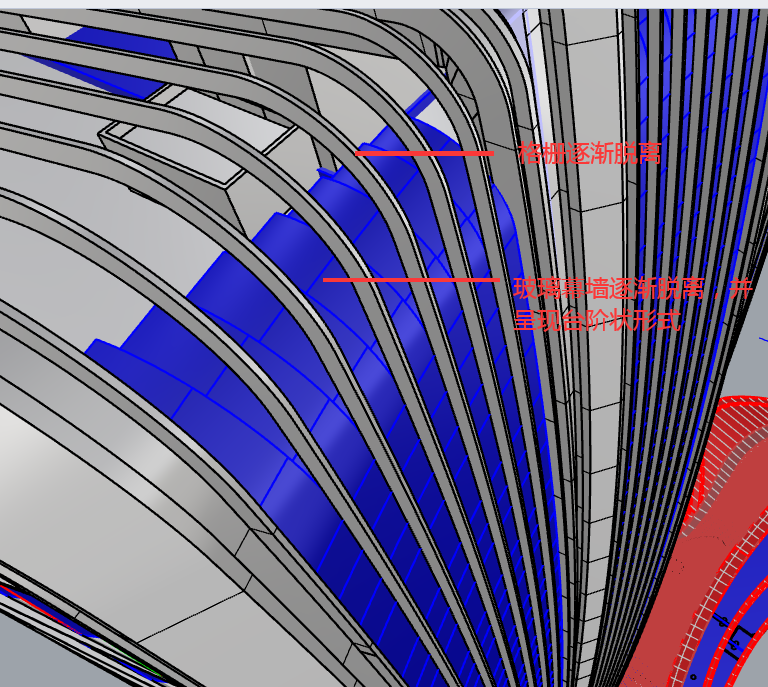

The roof grille and glass curtain wall are gradually detached from the bottom, and the left and right sides of the glass curtain wall are also gradually detached, presenting a circular arc step shape. It needs to be successfully realized and ensure that the roof grille and glass curtain wall present a circular arc step effect.



Soultion


The design of the modeling effect of the roof and the roof glass curtain wall

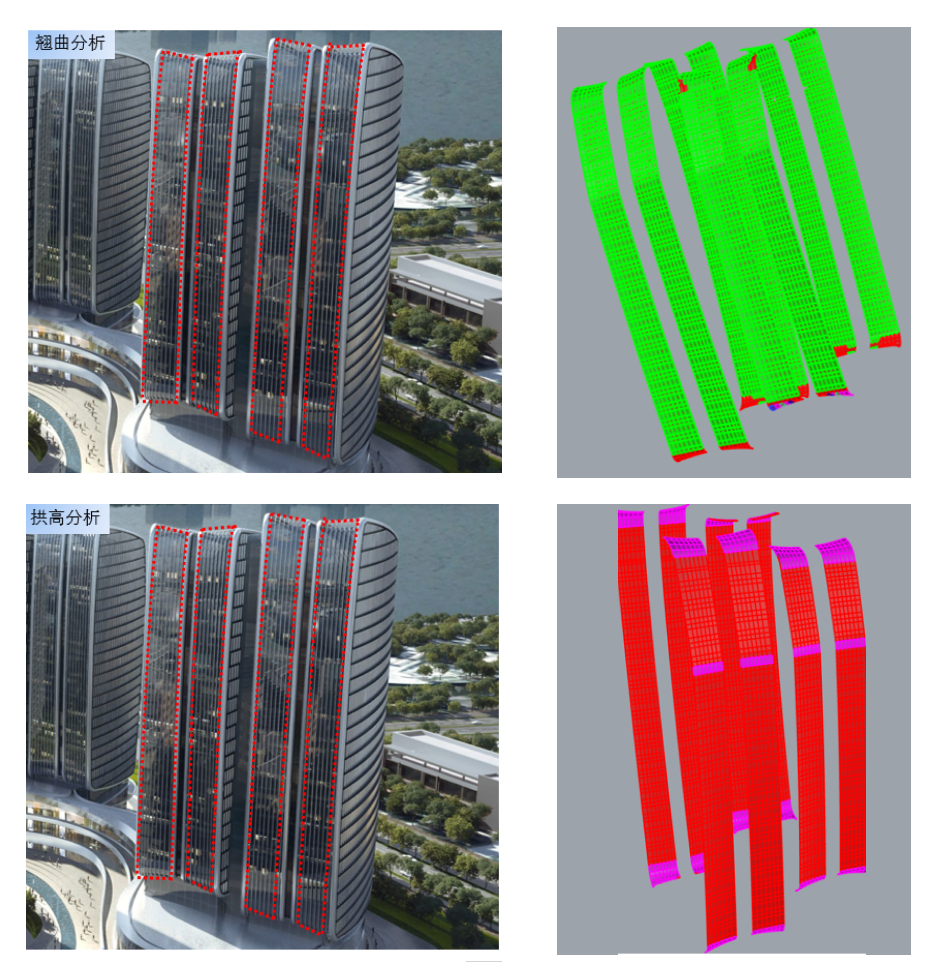

First, through model analysis and optimization, the hyperbolic plate is optimized as a single plate, and the degree of warping and detachment is analyzed.

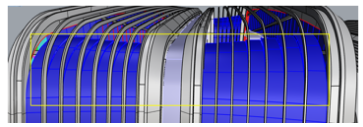

 Model analysis optimization


Then pick out the decorative strip of steel pipe support from the main steel structure. Secondly, design the curtain wall column as the component column. The column adopts fluorocarbon steel structure, and the steel structure is welded with the fixed decorative strip.as illustrated in following figure:



E

How to improve the installation efficiency and precision of the scale folding line curtain wall?


Difficult description


Many components of the frame curtain wall itself need to be installed on site. This project is also a triangular scale broken line curtain wall. If the column and the rear end column at the triangular cantilever position are assembled on site, the accuracy cannot be guaranteed and the efficiency is low.


The weight of the curtain wall itself of the triangle cantilever area is relatively heavy, and there is the risk of personnel trampling and staying in the area in the late small owners of the area.


Soultion


Overall assembly and lifting scheme design of scale frame curtain wall


The columns before and after the cantilever area are fixed and assembled with steel frame in the processing plant and the upper end unit, the whole steel beam is fixed through the lower end column and the upper end aluminum plate is fixed on the combined steel frame, and the steel frame can be processed in the processing plant and partially fixed on site;

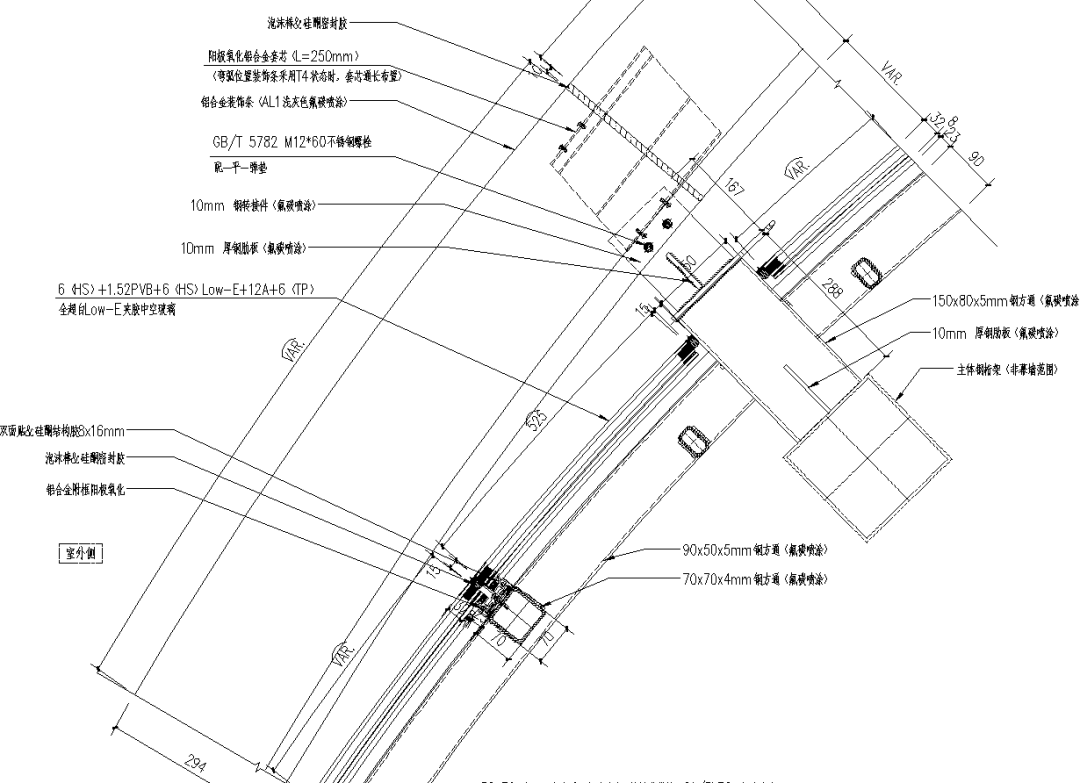

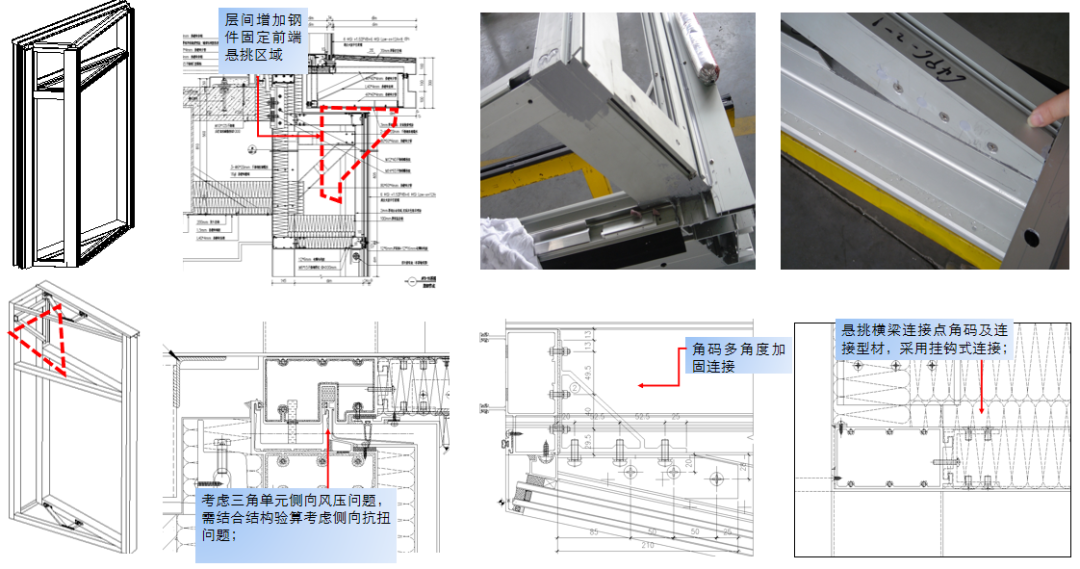

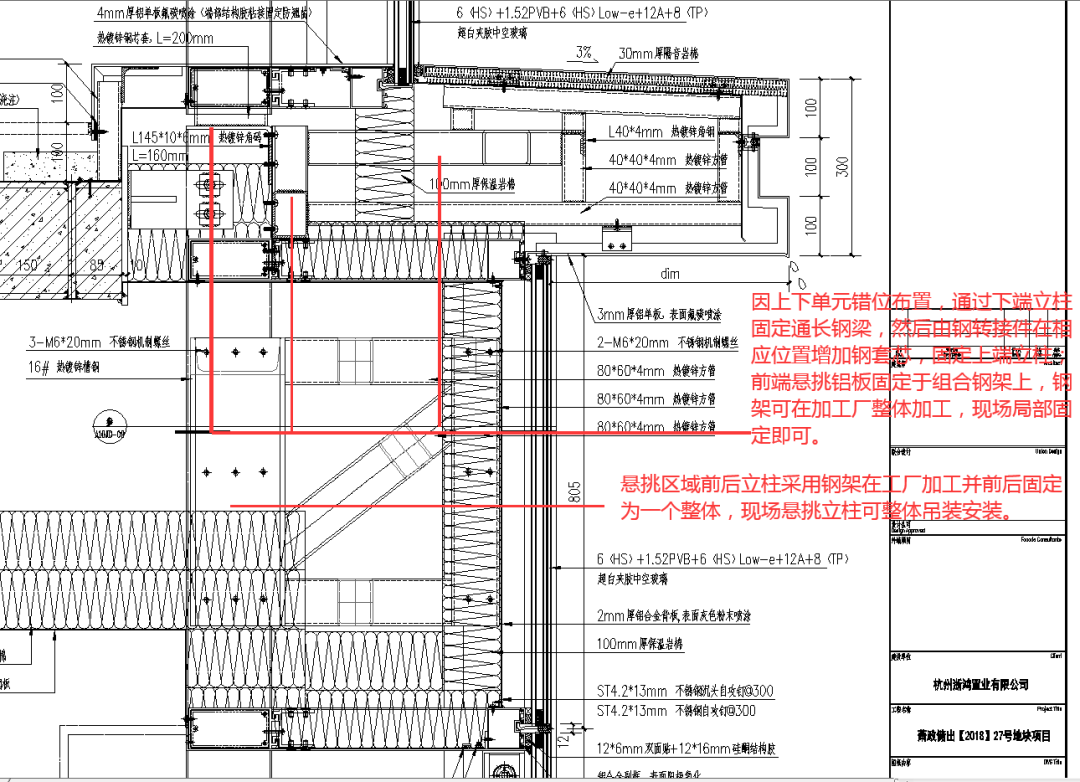

▲ Node design

▲ Connection structure and reinforcement measures of the scale curtain wall


Indoor because of the risk of personnel trampling, indoor mining tread surface using 4mm aluminum plate. The bottom has the corresponding steel skeleton support to ensure that it will not collapse in the case of personnel, and it is recommended to place landscape potted plants or signs to prevent personnel from trampling as far as possible to avoid risks.

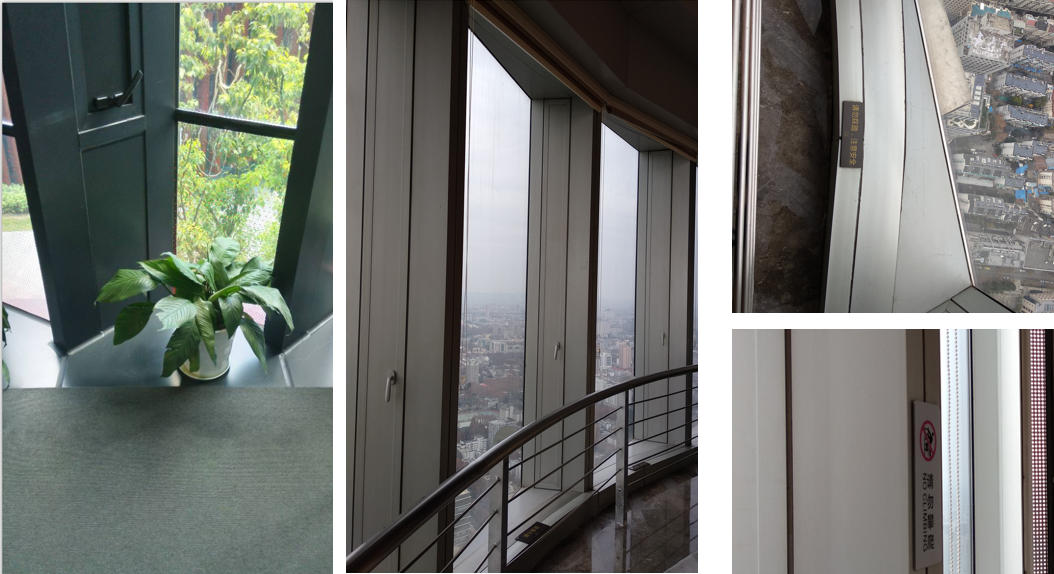

▲ Scaly curtain wall to prevent stampede measures




02


Design of window cleaning machine and opening and closing roof



A

How to ensure the operation and hidden requirements of the window cleaning machine simultaneously?


Difficult description


On T1, T2 roof window machine set up, because of the building size is more complex, need to ensure that the window machine in running is enough running space, meet the demand of the use function, at the same time for the project completed on the eve of the Asian games, the eve of the Asian games will have aerial propaganda, so the roof decoration grille must be intact and window machine shutdown, to ensure the unity of appearance and integrity.


Soultion

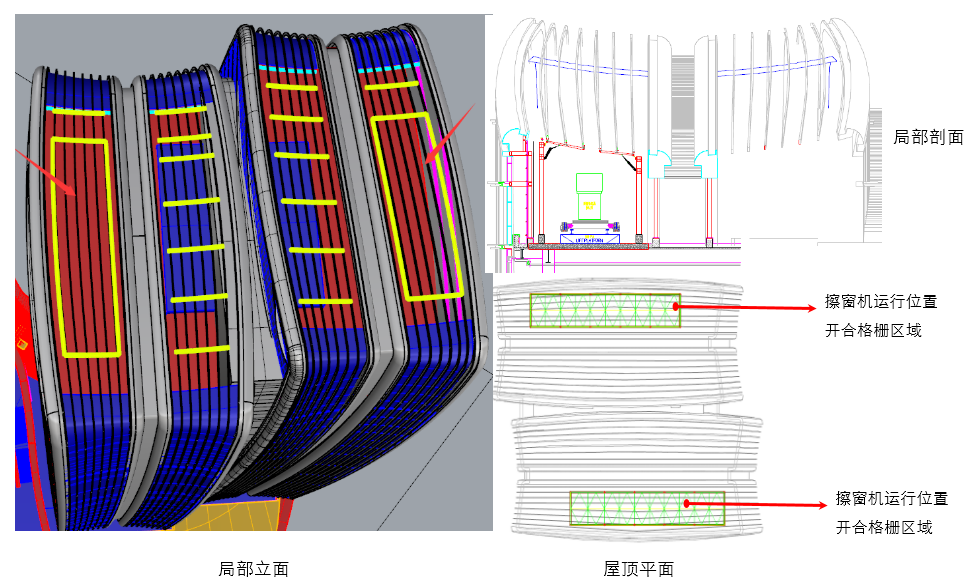

Roof window cleaner open qualified grid design scheme


Roof window machine should be the owner and building scheme courtyard hidden effect demands, in the design from the use of the window machine space, wipe the window machine telescopic, grille open form made further design contrast, provide the owner with translation open and folding open two solutions, finally for comprehensive consideration of cost and effect, choose folding open scheme.

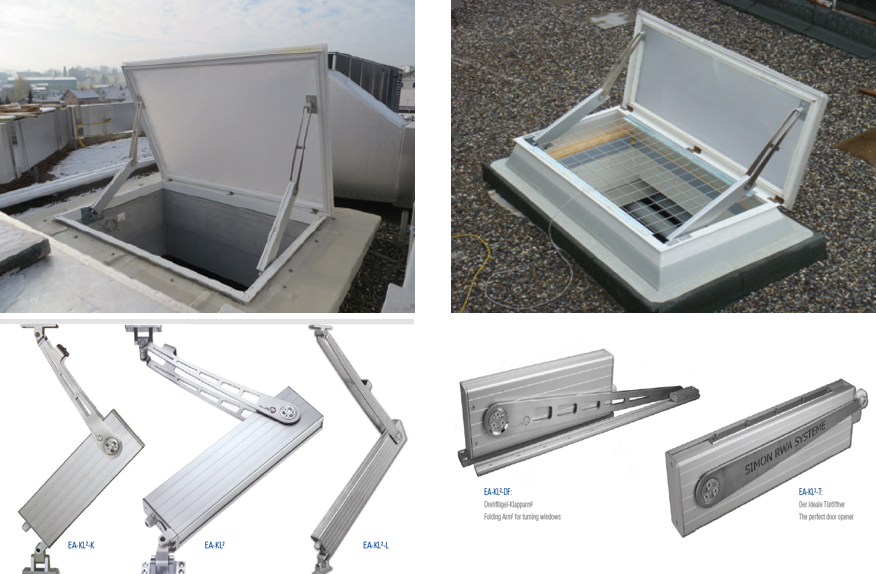

       ▲ Roof split body electric folding arm opening and closing scheme


The opening in the running position of each window cleaning machine is composed of multiple folding arm opening fans, which can be opened synchronously to meet the space needed for the track operation of the window wiping machine.


In addition, the roof of T3,4,5 floors has made different attempts and installation schemes for the curtain wall cleaning scheme. Because the roof has the use function, it is necessary to ensure the normal use of the window insertion machine and to ensure that the roof garden is not destroyed.




Soultion


In the damage, does not affect the overall beauty of the roof garden and the appearance of the building, the owner after the comprehensive consideration of concrete pier pole scheme.


 ▲ Roof with concrete pier scheme



Deep source, light LAN will be chapter



From the endless vast tidal flat to the jointing growing city skyline, for 20 years, Qianjiang Century City has become the new center of Hangzhou, a new cover. With the support of the "Double Meeting effect" of the G20 Summit and the Asian Games, Qianjiang Century City has become one of the most dazzling and valuable sectors in Hangzhou's development.


A picture of a modern future city center with the integration of three states, the balance between jobs and housing, and a happy life has been slowly unfolding.
