The North of Nanjing MixC is the third chess piece of China Resources MixC's lifestyle layout in Nanjing, and it is also a masterpiece of deep cultivation in this city - serving as a new landmark in the northern part of the city. This is an important area for the development of the city along the Yangtze River and a model for the protection of the Yangtze River. It is located in the Binjiang New City in the north of the main city of Nanjing and the modern service industry center in the north.

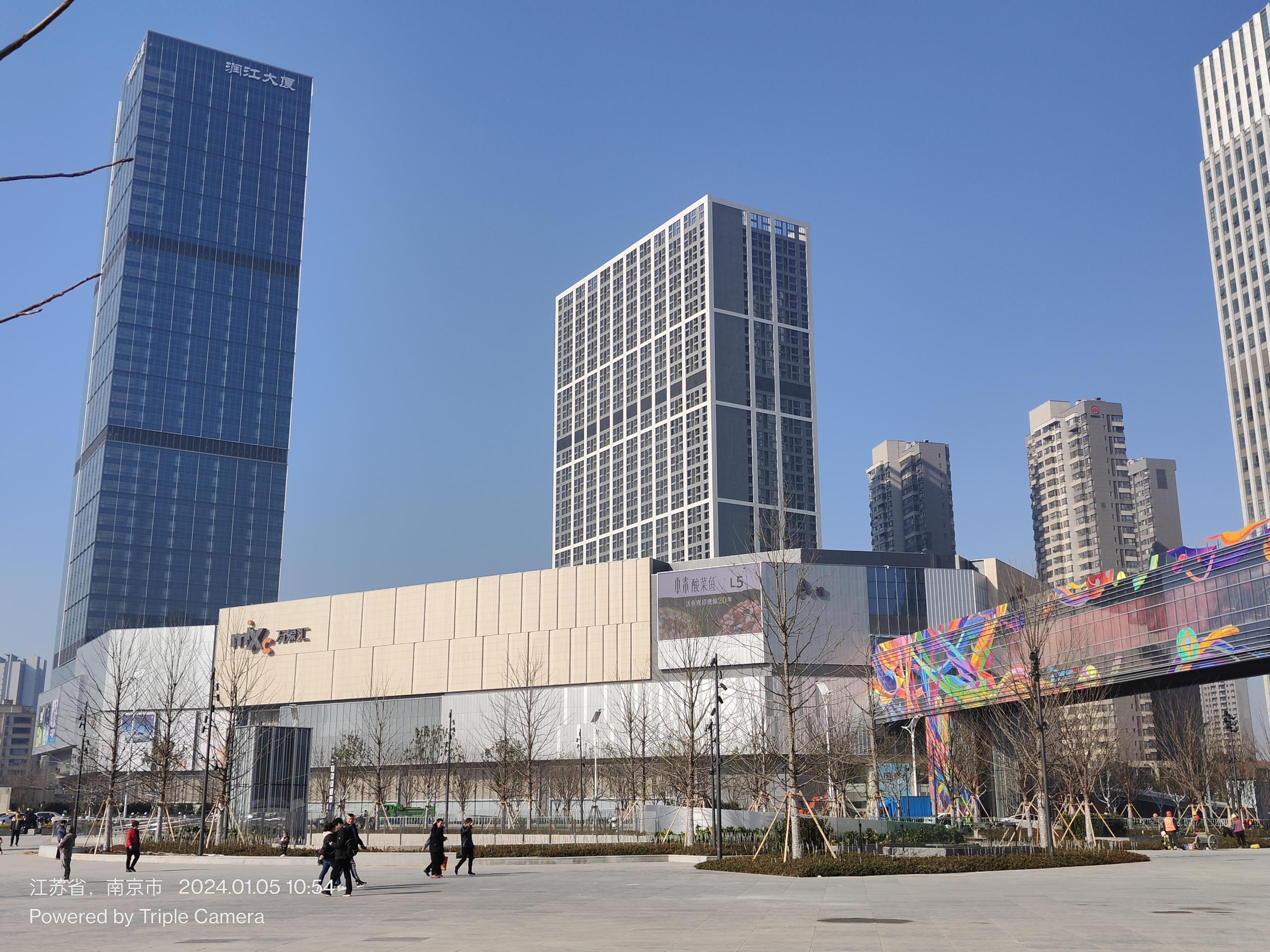

▲ Realistic view
The 210，000 square meter North of Nanjing MixC consists of two shopping centers, East and West. The West Shopping Center (Hall A) is positioned as a highland for quality living, while the East Shopping Center (Hall B) is positioned as a fashionable and trendy experience. Planning 3 main stores, 5 core business formats, and 6 themed spaces, it will be a one-stop consumption destination for leisure, shopping, sports, socializing, strolling, and dining in Nanjing.
The architectural facade continues the simple and elegant facade style of the MixC series complex,and integrates local cultural elements of Nanjing to shape a new landmark image of Yanziji New City.To meet the needs of all business formats,FORCITIS has created a diversified curtain wall system based on the exterior characteristics of its commercial complex.This project includes multiple types of glass curtain wall systems,as well as ceramic panel curtain wall systems,aluminum panel curtain wall systems,awning systems,glass skylight systems,metal ceiling systems,etc.The following is an introduction to curtain wall systems with different orientations and their structural design content(examples)and highlights.
Steel plate ribbed point glass curtain wall
The curtain wall is located at the northwest corner of 32A, and on the inside is an ice rink venue with a real ice surface of 1456 square meters. It is also the largest and only sports and commercial ice rink in Nanjing.
The external curtain wall adopts steel plate ribbed point fixture glass curtain wall, with a vertical spacing of 1.8 meters and a span of 12 meters.
▲ Outdoor realistic view

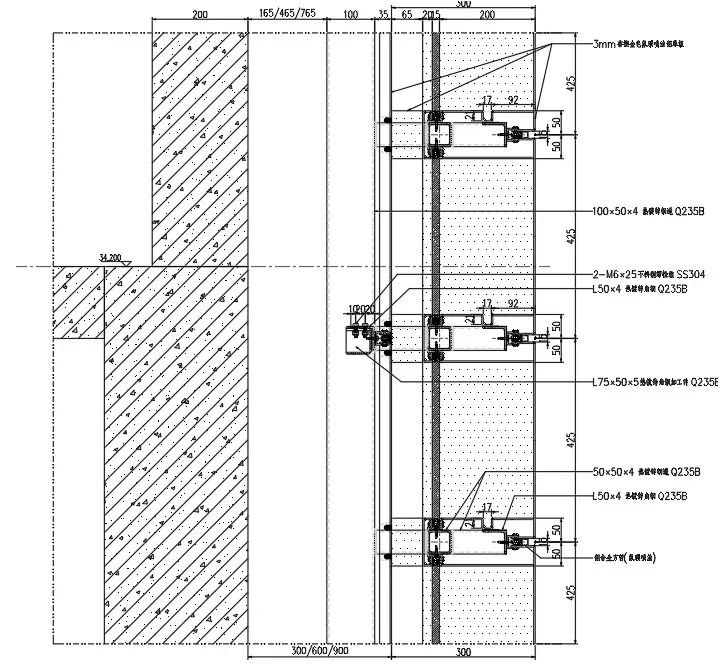

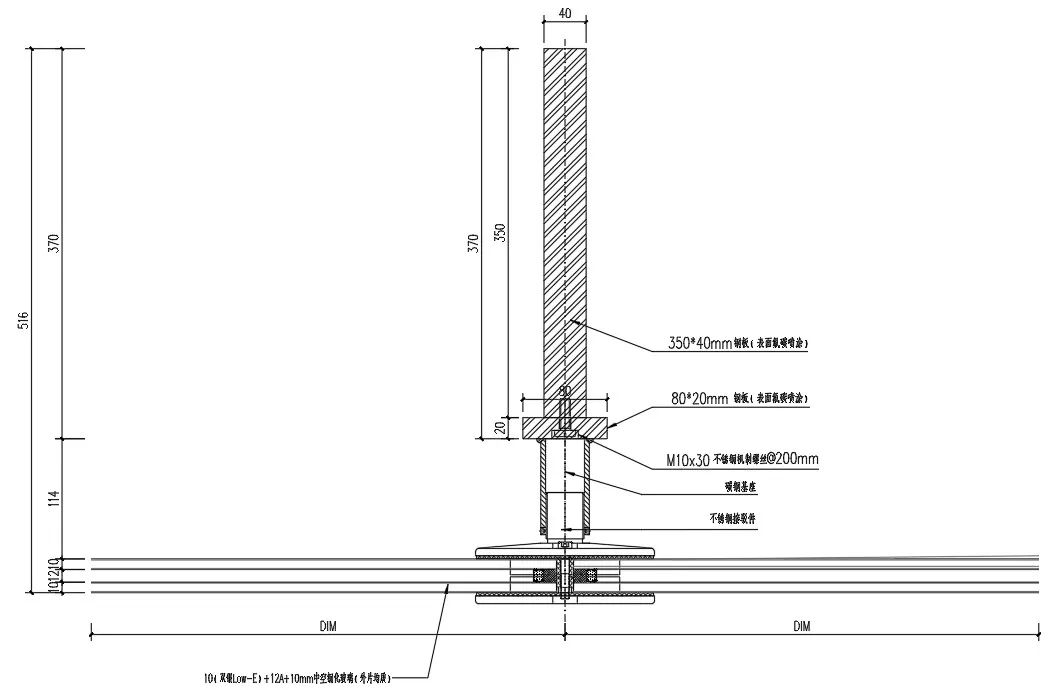

▲ Standard node diagram
▲ Indoor perspective

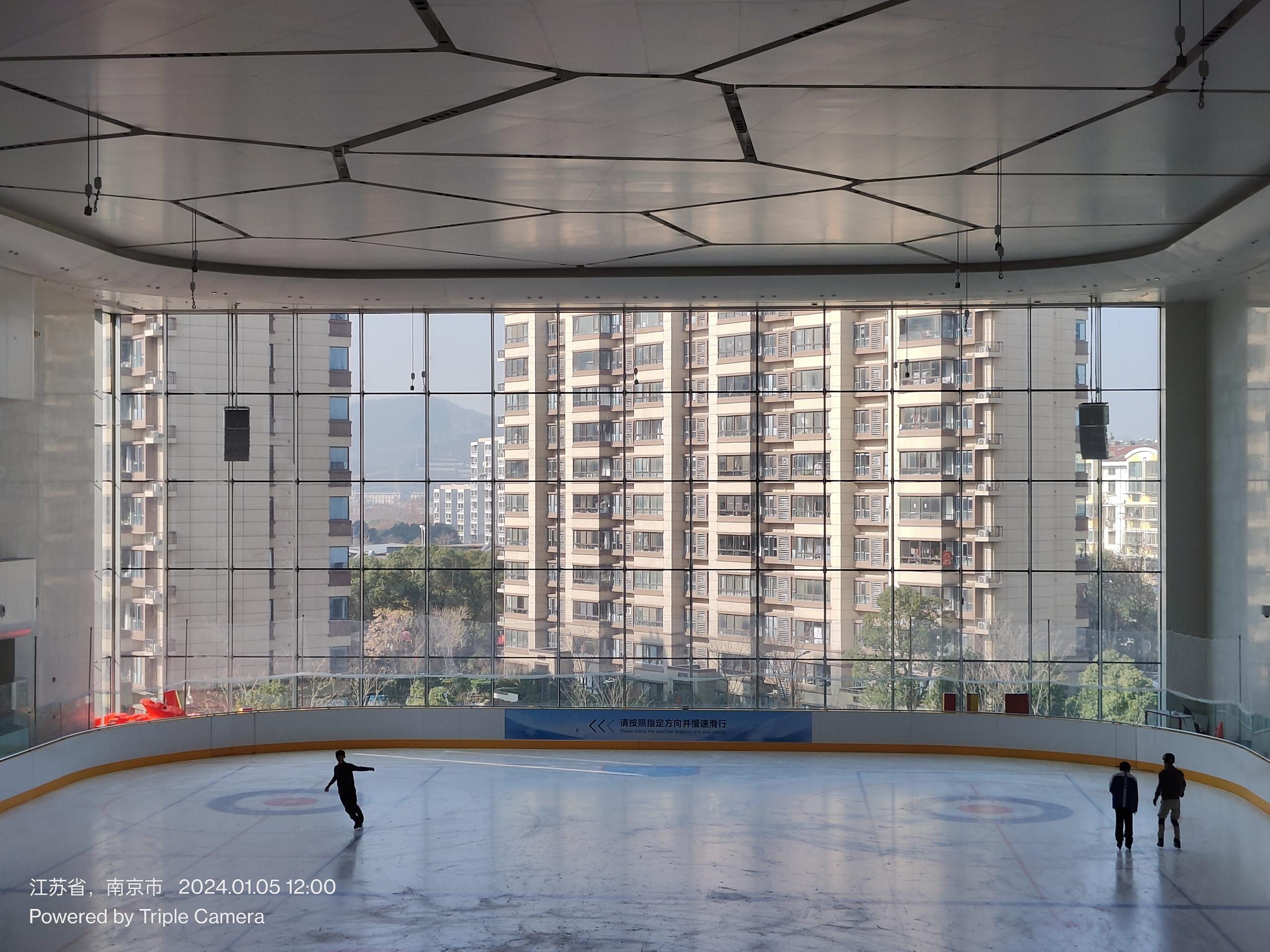

The Lasso curtain wall brings an extremely transparent view to the ice rink, creating an immersive ice rink atmosphere, improving the viewing experience of the indoor ice rink and the public's gaming experience.

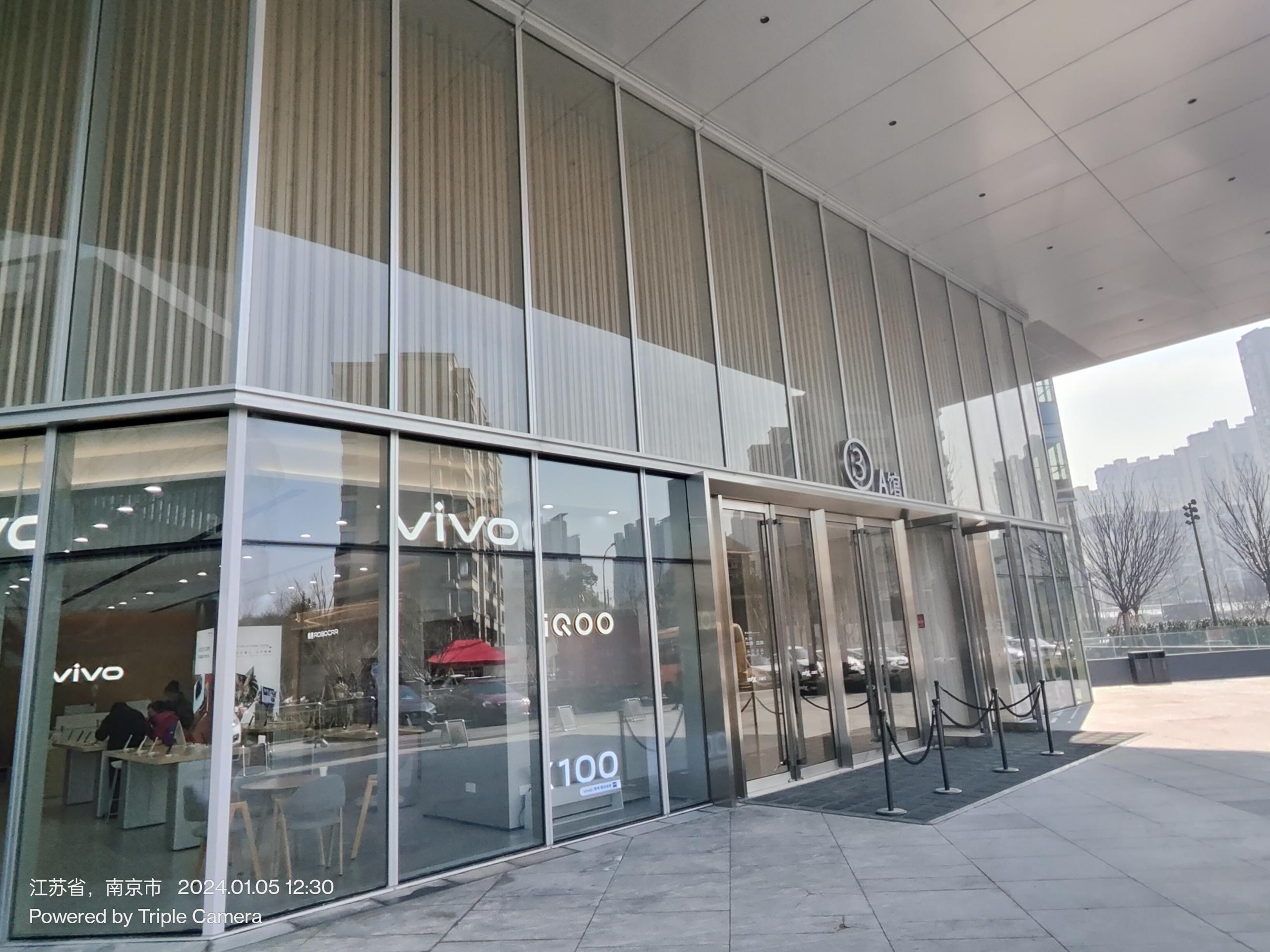

Showcase curtain wall system

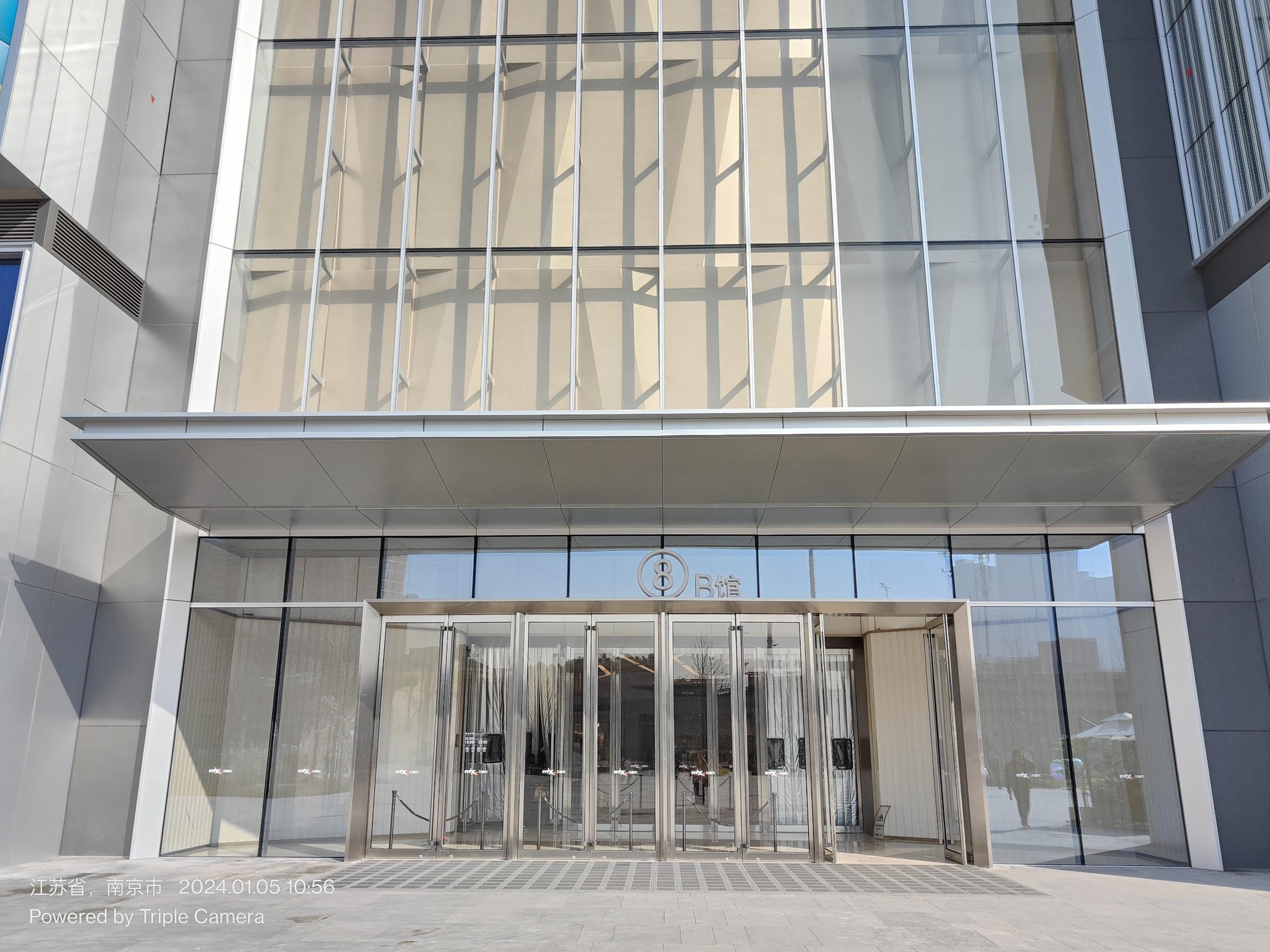

The showcase system of this project is mainly distributed at the main entrance and above the store, with a span of 15m at the main entrance.

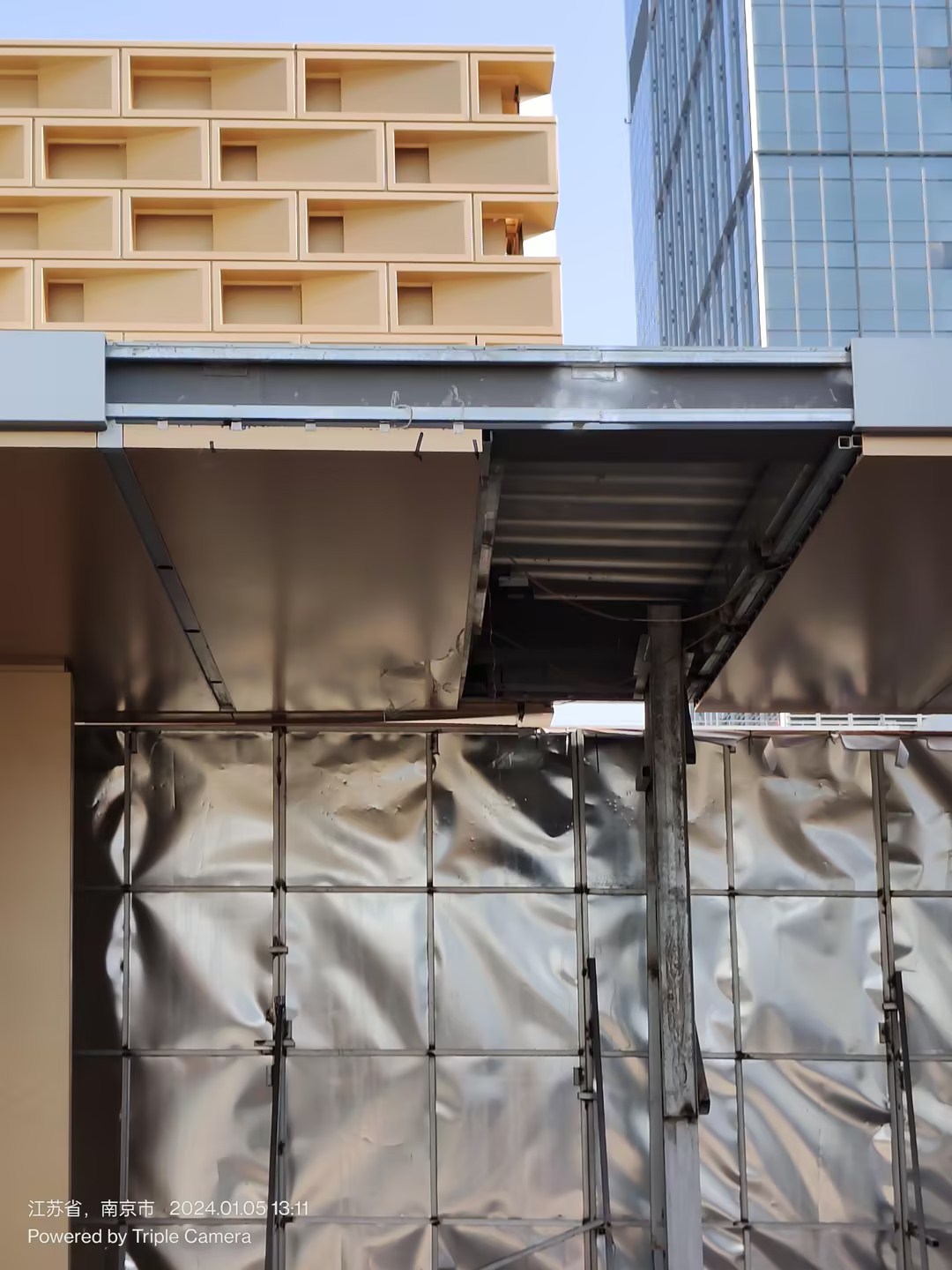

▲ Construction site map

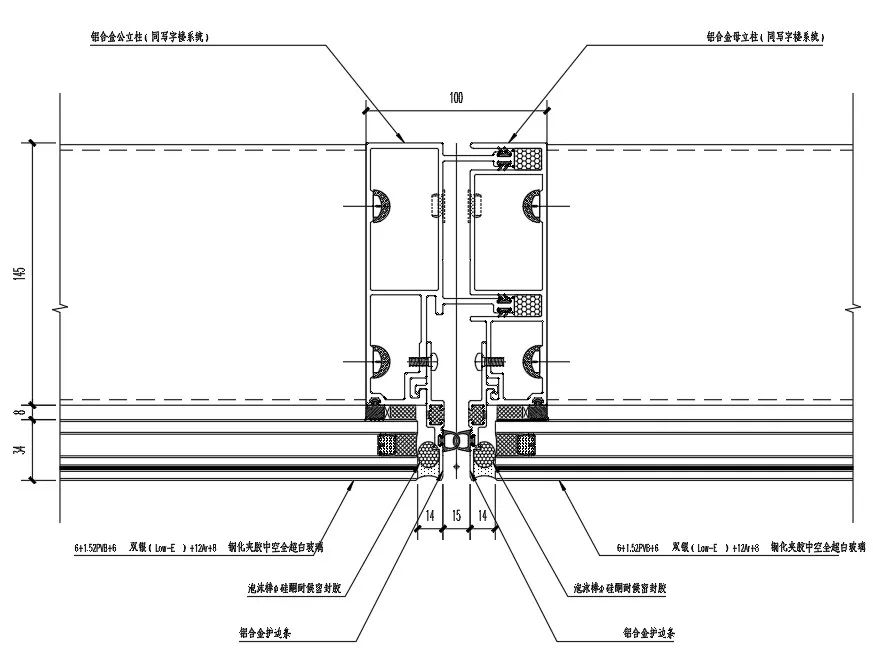

▲ Node diagram
The display window curtain wall adopts a double row keel setting, and the glass adopts a single laminated glass to ensure both safety and transparency.
In addition, a gap of 600 is reserved between the glass and the backing molding plate, creating a light box effect while meeting the needs of internal lighting maintenance.
▲ Realistic view
Daylighting roof curtain wall system

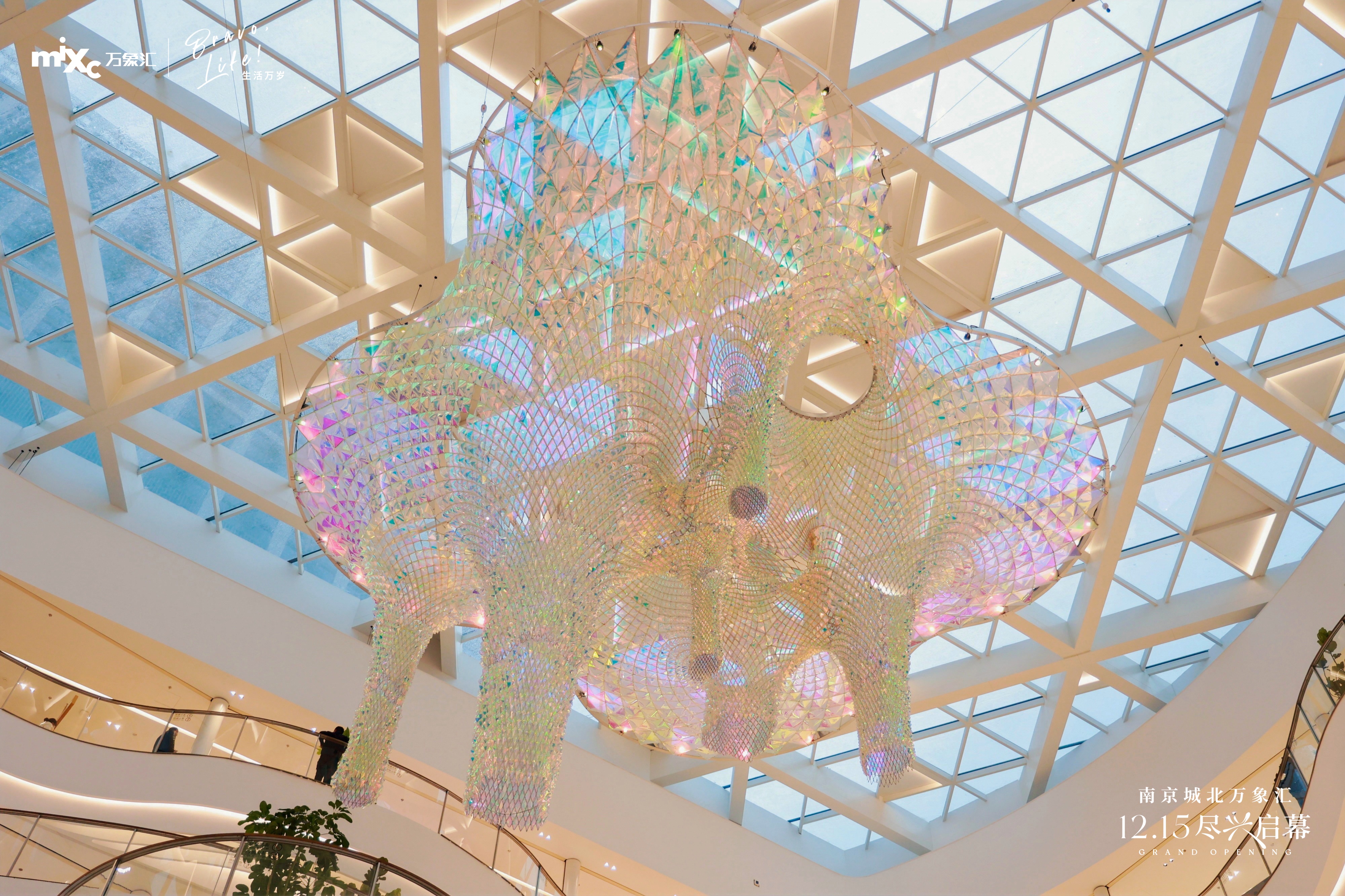

The lighting ceiling of this project adopts various styles, such as rectangles, triangles, or irregular geometric shapes, to match the venue's movement line, enhance the transparency of the atrium, and give people a sense of grandeur and spaciousness.
▲ Swipe left and right to view more real-life images
The ceramic panel curtain wall system is located on the third and fourth floors of the main facades of Hall A and B. The facades adopt a vertical 5mm and horizontal 10mm open system, with locally added 50mm wide aluminum alloy grooves and a backing of 1.5mm thick galvanized steel plate;
▲ Realistic view
The surface material is 35mm thick grooved ceramic plate, with a standard plate size of 1200x500mm. The vertical keel is made of 120X60X5mm hot-dip galvanized steel square tube, and the horizontal keel is made of 50X50X4mm hot-dip galvanized steel square tube, connected by aluminum alloy hangers; The surface of the panel is coated with self-cleaning paint, and the keel is hot-dip galvanized.
The ceramic panel facade adopts a modular arrangement:

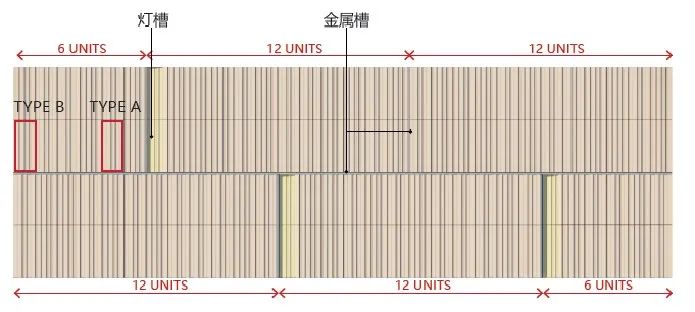

▲ Partial Enlarged View of Facade

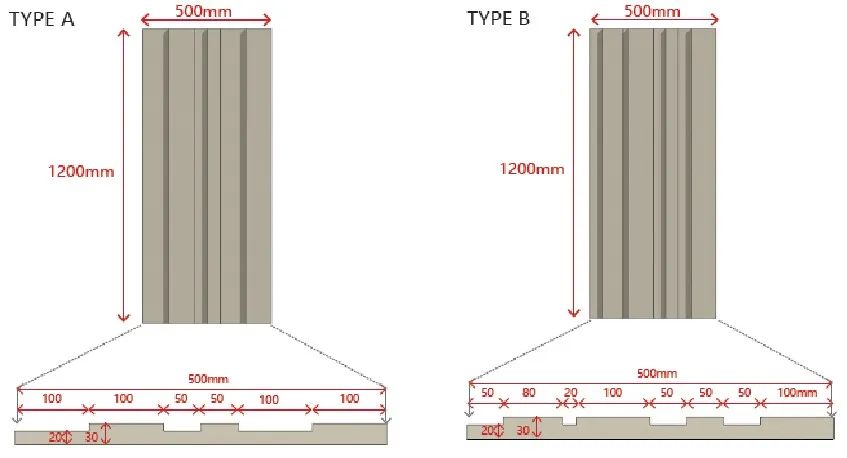

▲ Schematic diagram of standard cross-section

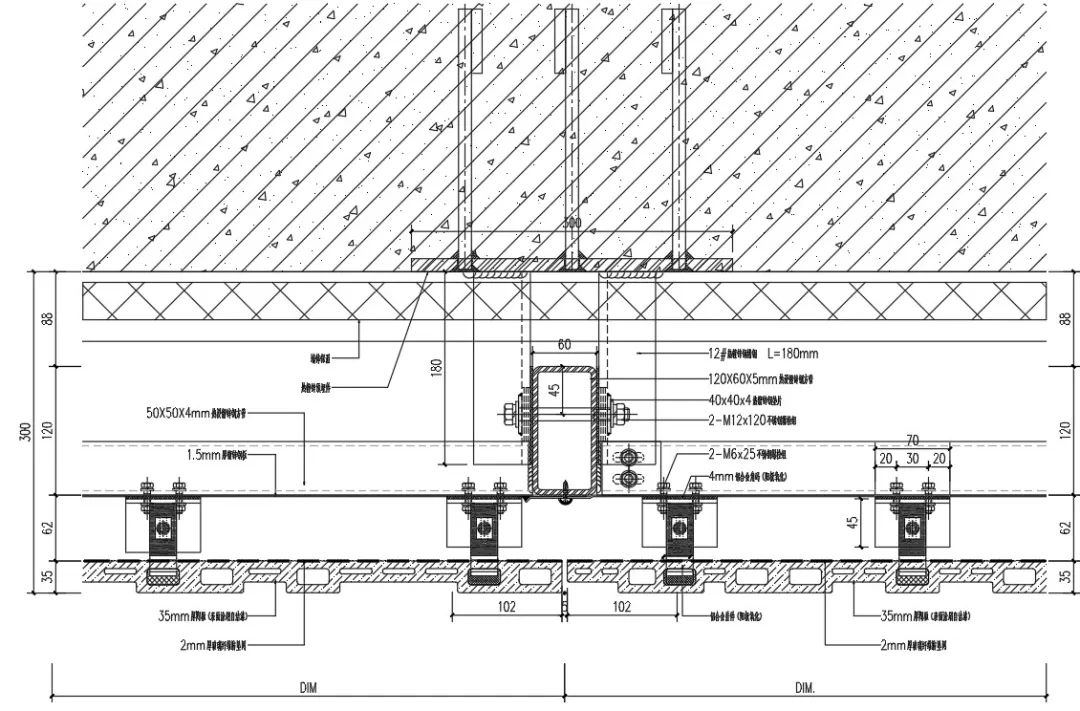

▲ Standard node diagram
To ensure the overall aesthetics of the facade, the system's edge closure and the design of various professional intersections are generally key processing areas.
▲ Swipe left and right to view more node maps
Highlight 1: Edge trimming of profiles between components enhances
the texture of building contours

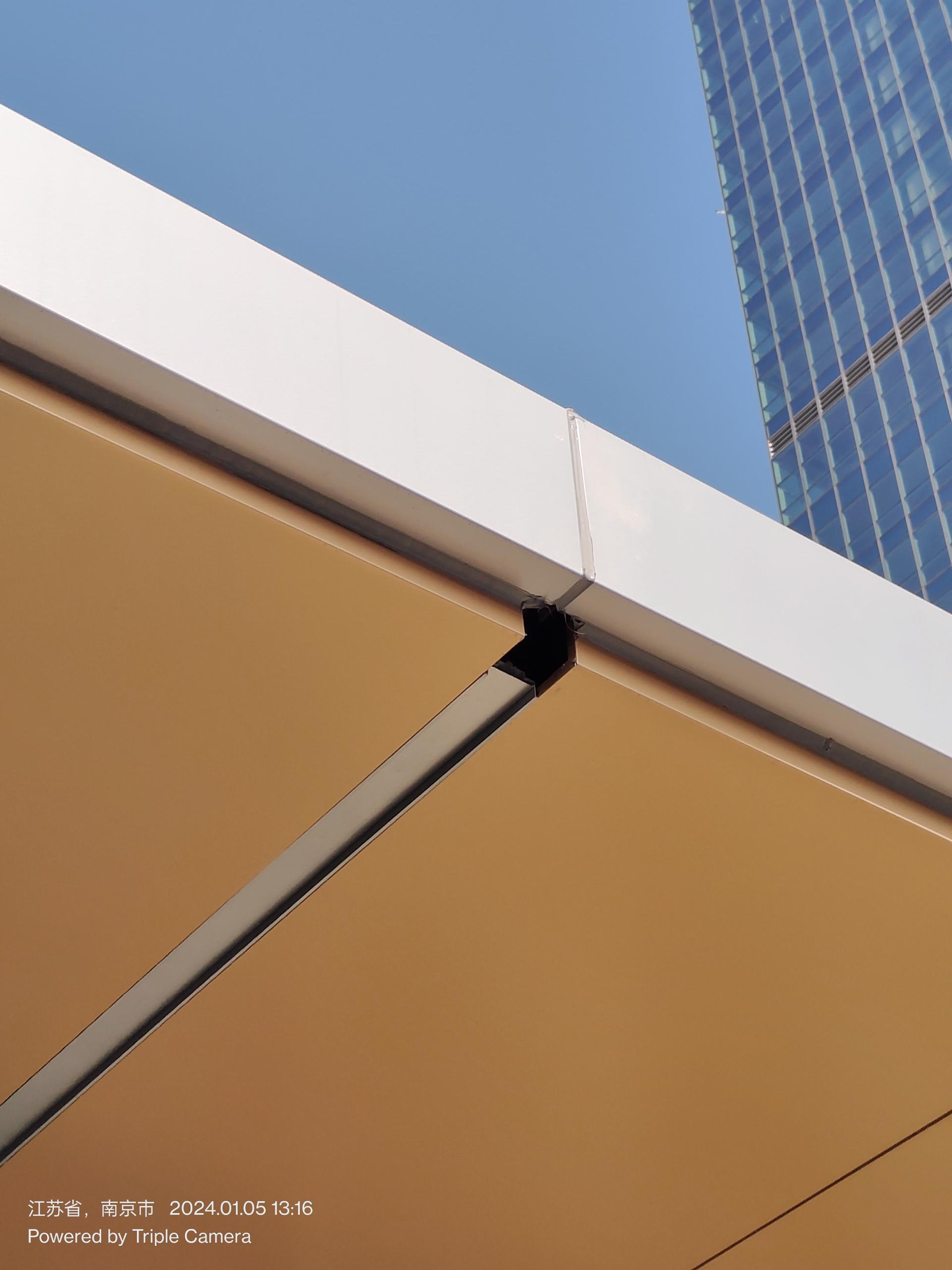

Advertising space, LED, canopy and other profile lines are pressed with edges, with straight edges and few seams, covering the aluminum plate adhesive joints
▲ Presentation effect
Highlight 2: Bridge Connection System

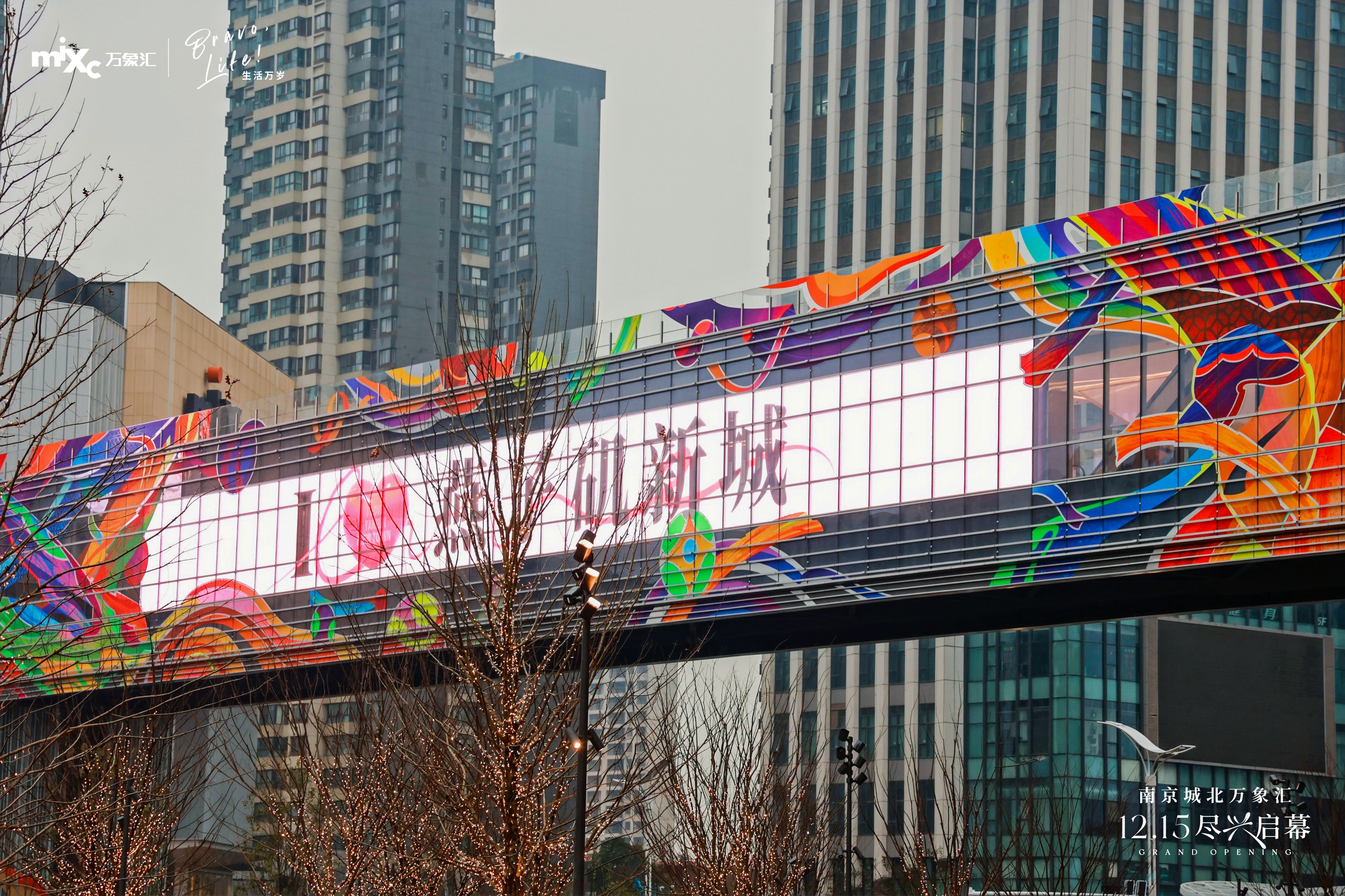

Dalian Bridge utilizes a tower unit system for modular installation, assisting in speed increase, and facilitating rapid construction without road closures
▲ Node diagram

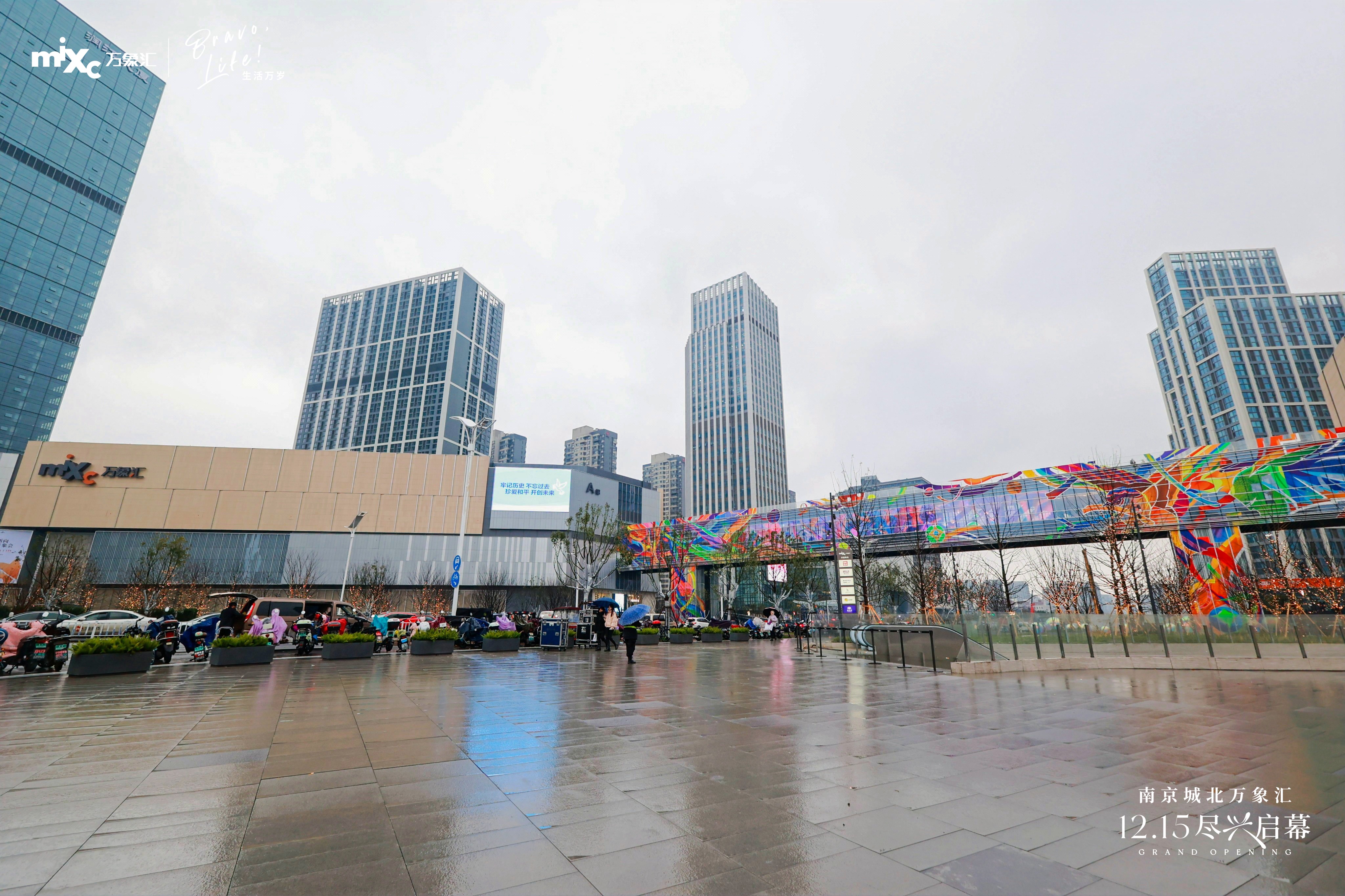

▲ Realistic view of connecting bridges
Highlight 3: Exploration of new materials, improving quality and efficiency
Attempting new materials for the facade; Soft porcelain replaces stone on the low area wall of the sunken square, meeting the effect while achieving cost savings

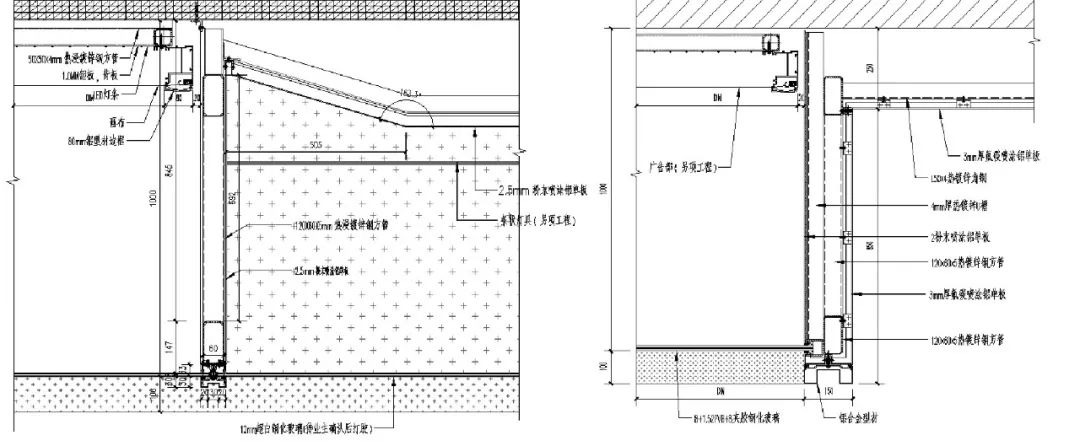

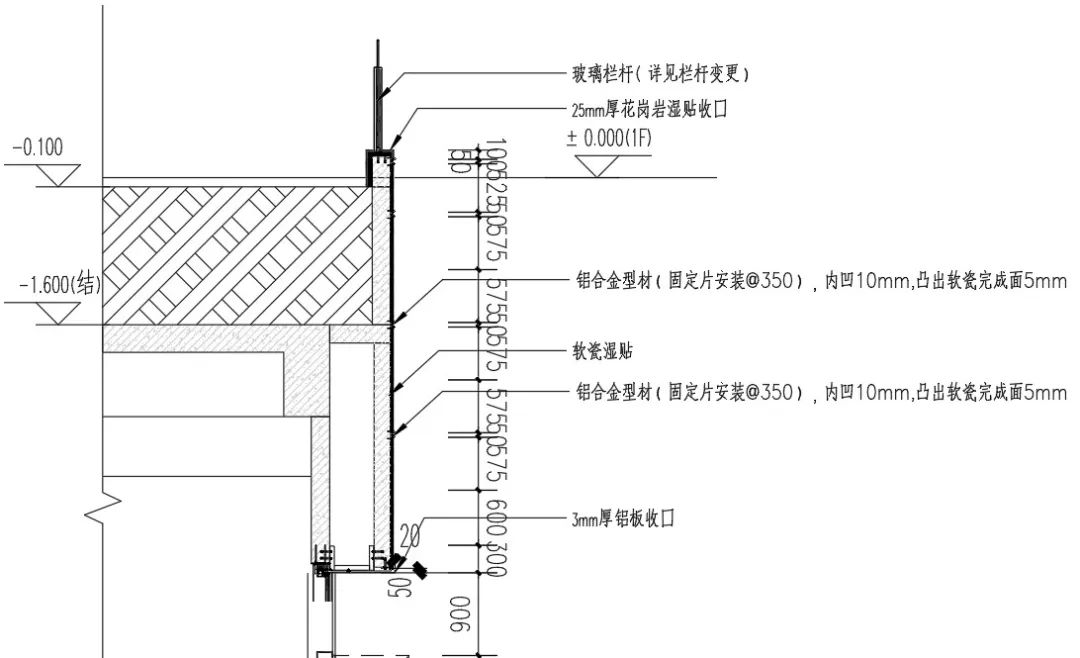

▲ Node diagram
Highlight 4: Modular aluminum plate unit
The aluminum plate unit adopts a modular design, and the standard modules are pre processed into a whole in the factory and installed on site to ensure installation accuracy and on-site construction efficiency
▲ 示意图
▲ Node diagram
Highlight 5: Honeycomb aluminum panel
The overhanging distance of the roof garden canopy is large. In order to ensure the integrity and flatness of the bottom, honeycomb aluminum panels were selected in the material, and the panel joints were designed with plug-in joints
▲ Realistic view
▲ Installation detail diagram
Appreciation of more real-life images:
▲ Swipe left and right to see more
When the charm of the ancient city meets the tide of the new city, Nanjing North MixC is based on Yanziji, advancing together with urban
development, moving from the "Qinhuai River era" to the "Yangtze River era". As the largest MixC in China, "Big Mac" looks forward to you
checking in.
